Product that allows you to vary the width
of the overall machine dimensions even after purchase.
Agricultural wheels specific for inter-row crops that require a high tractor height from the ground
These wheels are characterized by large diameters but narrow sections,
to avoid crop damaging
Characteristics

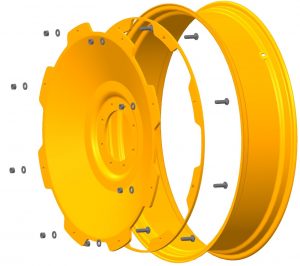

They are made up of three components, Rim, Bracket and Disc
As with the Waffle wheel, also with this solution
it is possible to widen or reduce the track up to 8 different positions

Field of use
They arise from the requirement to adhere to specific tracks that are between 1,500mm and 2,100mm
They are usually used for post-sowing work,
such as fertilization and weed control
Originally they were used mainly on small tractors, up to 80/90 hp,
but in recent years they have also been used on more powerful tractors, up to 160/180 hp,
due to increasingly heavy machinery and the evolution of agricultural technologies.
Codice Prodotto | Circle diameter | Rim width | Rim profile | Wheel type | High speed rating |
---|---|---|---|---|---|
54.0 |
12.00 |
W |
Ring |
up to 40 km/h |
|
54.0 |
10.00 |
W |
Ring |
60 kmh |
|
52.0 |
10.00 |
W |
Ring |
up to 40 km/h |
|
50.0 |
12.00 |
W |
Ring |
60 kmh |
|
50.0 |
10.00 |
W |
Ring |
50 kmh |
|
48.0 |
12.00 |
W |
Ring |
up to 40 km/h |
|
48.0 |
10.00 |
W |
Ring |
50 kmh |
|
48.0 |
8.00 |
W |
Ring, L-Lug |
up to 40 km/h |
|
46.0 |
13.00 |
W |
Ring |
50 kmh |
|
46.0 |
10.00 |
W |
Ring |
50 kmh |
|
44.0 |
10.00 |
W |
Ring, L-Lug |
up to 40 km/h |
|
44.0 |
8.00 |
W |
Ring |
50 kmh |
|
42.0 |
10.00 |
W |
Ring |
up to 40 km/h |
|
38.0 |
12.00 |
DWW |
Omega-Lug, Waffle |
up to 40 km/h |
|
36.0 |
11.00 |
W |
Omega-Lug, Waffle |
up to 40 km/h |
|
36.0 |
8.00 |
W |
Waffle |
up to 40 km/h |
|
36.0 |
7.00 |
W |
Omega-Lug, Waffle |
50 kmh |
|
34.0 |
10.00 |
W |
Waffle |
50 kmh |
|
32.0 |
10.00 |
W |
Omega-Lug, Waffle |
up to 40 km/h |
|
32.0 |
8.00 |
W |
Waffle |
50 kmh |
|
32.0 |
7.00 |
W |
Ring, Waffle |
50 kmh |
